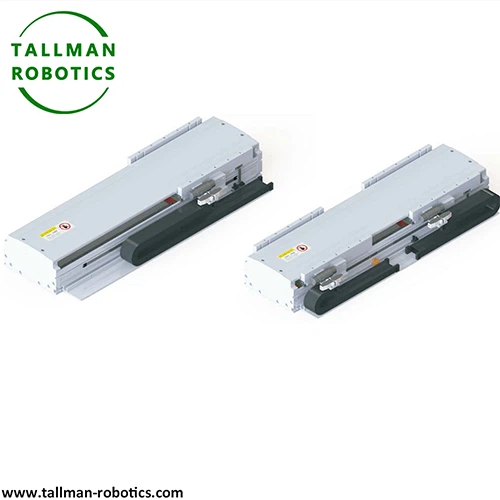

Force Controlled Smart Linear Motor hi linear motor system a ni a, force control technology leh intelligent algorithms te a hmang a, output force (thrust emaw tension emaw dik taka siamrem thei), dynamic response sang tak, adaptive adjustment, leh intelligent motion control te a ti thei a ni. Force Controlled Smart Linear Motor hi force control dik tak emaw, interactive operation emaw mamawhna scenario-ah te, robot, precision manufacturing, medical equipment, etc.-ah te hman a ni nasa hle.
|
Thurin (Principle) a ni |
Linear motor hmanga siam leh force control technology nena inzawm chuan force control intelligent linear motor hian sensor hmangin output force chu real time-in a hmuchhuak a, force feedback signal chu controller hnenah a thawn chhuak thin. Controller hian set force value leh feedback force value a khaikhin a, input current leh parameter dangte a siamrem a, output force control dik tak a nei thei bawk. TallMan Robotics atanga TM-LM linear motor module hian force control dik tak neih theih nan force position hybrid control algorithm, constant force control algorithm, etc. a hmang a. |
|
Structural characteristic hrang hrang a awm |
A tlangpuiin linear motor body, force sensor, controller, etc. atanga siam a ni a, linear motor hian linear motion driving force a siam chhuak a; Force sensor hmanga output force real time-a tehna, a tlangpuiin strain gauge, piezoelectric sensor, etc. te pawh a tel a; Controller hi force feedback signal processing leh control command pekchhuahna atana mawhphurtu core component a ni. Performance leh integration tihchangtlun nan force controlled intelligent linear motor thenkhat chuan drive control integrated design an hmang a, hei hian driver leh controller a inzawm khawm a, volume leh wiring a tihhniam bakah system stability leh rintlakna a ti tha bawk. |
|
Performance lama hlawkna a awm |
1).High force control accuracy: Force control dikna sang tak a nei thei. Entirnan, intelligent TM-LM linear motor module-ah precision force control function kan dah belh hnuah, pushing force control accuracy chu ± 0.01N a thleng thei a ni. Fast response speed: force inthlak danglamna rang taka chhan let thei, output force chu real time-a siamrem thei, dynamic force control mamawhna nena inmil thei. Intermediate transmission mechanism a awm loh avangin mechanical inertia leh hysteresis a tlahniam a, hei hian system response speed leh sensitivity a ti tha zawk a ni. 2).High positioning accuracy: Force control accuracy sang bakah hian positioning accuracy pawh a tha hle. Product thenkhat chuan repeated positioning accuracy ± 0.001mm an nei a, hei hian high-precision positioning leh force control mamawh a phuhruk thei a ni. 3).Flexible control mode: Control mode hrang hrang a support a, chu chu force position hybrid control, constant force control, etc. te hi a ni a, force control leh position control dik tak neih theih nan application mamawh hrang hrang angin control method tha tak tak thlan theih a ni. |
Force Controlled Smart Linear Motor hian force sensor leh intelligent control hmangin linear motor chu dik taka dah mai bakah dynamic leh adaptive force control operation sang tak a nei thei bawk. High-end manufacturing, medical robotics, scientific research testing, leh thil dang dangah te hlutna nasa tak a nei a ni. Nakin lawkah chuan AI leh sensing technology hmasawnna nen chuan a hmanna tur a zau lehzual dawn a ni.

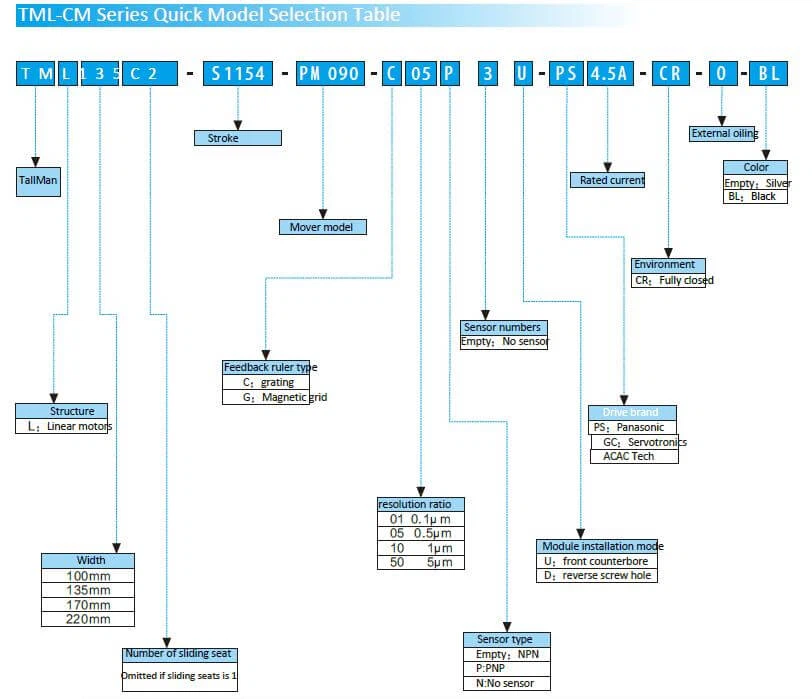

Hetah hian Linear motor, Model TML170-CR for clean environment kan rawn tarlang a, data sheet a hnuaia mi ang hian:
Project dang en duh tan emaw, Youtube hmanga kan video gallery: https://www.youtube.com/@tallmanrobotics te tlawh theih a ni bawk
Force Controlled Smart Linear Motor, a high-precision force control, fast response, leh flexible adjustment characteristics nei hian force leh position dik taka control ngai scenario-ah hmun pawimawh tak a chang a, precision manufacturing, electronic semiconductors, medical health, leh scientific research experiment-ah te pawh hman a ni nasa hle. A hnuaia tarlan te hi application scenario bikte chipchiar taka sawifiahna a ni:
1. Electronics leh Semiconductor siamchhuahna
Electronics industry hian assembly leh testing atan hian precision mamawhna sang tak a nei a. Force controlled intelligent linear motor hian force tam lutuk avanga component chhiatna a pumpelh thei a, chutih rualin a hnathawh dan mumal tak a siam thei bawk.
|
Chip packaging leh testing te pawh a awm bawk |
Wire bonding process chhung hian solder wire leh chip pin inkara contact force (a tlangpuiin ± 0.1N chhungah) dik taka control a ngai a, chu chuan chip a chhiat loh nan emaw, contact tha lo emaw a veng thei a Chip testing neih chhung hian probe leh chip solder joint inkara contact force control hian probe bending emaw chip breakdown emaw a veng thei a ni. |
|
PCB board inzawmkhawm a ni |
SMT leh plug{0}}in process neih laiin component tenau resistor leh capacitor te placement force control la, component detachment emaw pad chhiat loh nan Flexible circuit board (FPC) lamination process-ah chuan constant force control hmangin uniform adhesion a awm theih nan leh wrinkles emaw crack emaw a awm loh nan hman a ni. |
|
Display screen siam dan tur |
LCD emaw OLED screen leh backlight module te inzawmkhawm lai hian glass substrate a chhe lo turin pressure force control la Touch screen sensor te bonding process chhung hian force feedback hmangin pressure hi siamrem a ni a, chu chuan sensing layer chu stable conductivity a nei thei a ni. |
2. 3C thil siamte chu chiang taka inzawmkhawmna
3C product (mobile phone, computer, smart device) te hian component te tak te leh chhe thei lo an nei a, force control technology hian assembly efficiency leh yield a ti sang thei a ni.
|
Mobile phone hmanga inkhawmpui a ni |
Camera module leh battery cover press hian casing deformation emaw, internal components tihchhiat emaw ven nan pressure control a ngai a; SIM card slot leh button inzawmkhawmnaah hian force feedback hmangin an install tha em tih hriat a ni a, over tightening emaw loosening emaw tih loh tur a ni. |
|
Connector dah leh lakchhuah |
USB interface leh ribbon connector te insertion leh removal process chhung hian insertion leh removal force chu chiang taka control tur a ni (Micro USB insertion leh removal force hian 5-30N a mamawh tlangpui ang chi) pin bending emaw interface wear emaw ven nan, leh assembly chu force curve hmanga qualified a nih leh nih loh hriat nan. |
|
Thil inbel theih, watch/headphone ang chi te |
Micro gear leh battery inzawmkhawmna atan hian precision components deformation awm lo turin millinewtons (mN) force control a ngai a; Watch strap leh watch case inkar connecting screw te khauh taka tihkhauh hian force feedback hmangin a slip emaw a chhe lo emaw a ni. |
3. Damdawi hmanrua leh Bioengineering
Medical field-a force control hi operational safety leh experimental accuracy nen a inzawm tlat a, force controlled motor hian minimally invasive leh precise movement a ti thei a ni.
|
Surgical robot chu a tlem berah invasive a ni |
Laparoscopic surgery-ah chuan instrument (forceps, scissors ang chi) te chu tissue nena an inzawm chuan clamping force (a tlangpuiin<1N) is adjusted in real time through force feedback to avoid damaging blood vessels or organs; During orthopedic surgery, pressure should be controlled to prevent bone fractures during bone drilling or screw implantation. |
|
Damdawi siam chhuah leh biological experiment te |
Microfluidic chip operation-ah chuan chip channel rupture loh nan trace liquids (μ L level) injection emaw extraction force control tur a ni a; Cell culture-ah chuan cell man leh press (atomic force microscopy hmanga cell mechanics experiment ang chi) chuan cell thihna ven nan nanonewtons (nN) force control a ngai a ni. |
|
Rehabilitation hmanrua te |
Rehabilitation robot-a limb training module hian force feedback hmangin damlo force state chu a hre thei a, auxiliary force chu real time-ah a siamrem a, traction tam lutuk avanga taksa ruh chhiatna a veng thei bawk. |
4. Thil dik tak test leh quality control
Product testing process-ah chuan force controlled motor hian usage scenario-a force state chu a simulate thei a, a nih loh leh force curve analysis hmangin product performance chu a judge thei bawk.
|
Material Mechanics Testing neih a ni |
Metal sheet, plastic film, leh fiber ang chi material-a tensile leh bending test neih hian loading force rate leh magnitude chu chiang takin control a ni (0.1N atanga 100N thlenga continuously adjustable ang chi) yield strength leh material elastic modulus ang chi parameters hmuh theih nan. |
|
Button/Switch Nunna Test |
Phone button, keyboard leh car button (a tlangpuiin 1-5N) an hmet chakna chu simulate la, testing cycle sang tam tak chhunga force value inthlak danglamna hmangin product durability chu teh rawh. |
|
Sealing performance testing neih a ni |
Tui cup leh pressure vessel-a sealing ring-ah pressure test neih a, squeezing force control a, force inthlak danglamna enfiah a, leakage a awm leh awm loh enfiah (force tlahniam pangngai lo chuan seal failure a tilang thei). |
5. Research leh hmanraw bik
Cutting-edge research emaw special environment emaw-ah chuan force controlled intelligent linear motor hian high-precision experiment atan force output nghet tak a pe a ni.
|
Space experimental hmanrua te |
spacecraft ground simulations emaw microgravity environment-a experimental sample-a chakna (crystal growth leh material welding ang chi) te chu chiang taka control a, gravitational interference tihbo a ni. |
|
Nano level hmanga hnathawh theihna platform a ni |
Scanning probe microscopy (SPM) leh nanoindentation instrument-ah chuan probe leh sample surface inkara contact force chu force controlled motor (μ N emaw nN level thleng pawhin) hmangin control a ni a, atomic level surface morphology observation emaw material hardness testing emaw a ti thei a ni. |
|
Robot hmanga hnathawh a ni |
Collaborative robot (gripper ang chi) end effector hmanga precision instrument an inzawmkhawm hian, workpiece positional deviation tenau te nena inmil tur leh rigid collision awm loh nan force feedback hmangin "compliant control" a awm thei a ni. |
Force controlled intelligent linear motor-te core value chu force leh position control dik leh inzawmkhawmah a awm a ni. An hman dan tur scenario-ah hian "force magnitude" leh "operational accuracy" inkara balance a ngai a, a bik takin "force sensitivity", "susceptibility to damage", leh "high consistency" mamawh scenario-te tan a tha hle. Industrial automation chu "flexibility" leh "intelligence" lam hawia a lo than chhoh zel avangin a hmanna tur a zau zel a, chu chu energy thar battery electrode welding leh photovoltaic module stacking ang chi field thar chhuak te hi a ni.
