Compact Linear Module, Compact Linear Actuator tia hriat bawk hi linear transmission device a ni a, a structure a compact hle.
Compact Linear Module hian aluminum alloy frame a hmang tlangpui a, chu chuan linear guide, slider, leh drive system (ball screw, synchronous belt, emaw linear motor ang chi) te chu volume tlemteah a inzawm khawm a, hmun a luah tlem zawk a, installation environment tawi takah pawh a insiamrem thei bawk. Hetiang module hian motion accuracy leh positioning accuracy sang tak a nei a, linear motion dik tak a ti thei bawk. Compact Linear Module hi electronic manufacturing, precision instruments, medical equipment, etc.-ah te hman a ni tlangpui a, part handling, positioning, leh assembly ang chi hna a thawk thei a ni. Chu bakah, compact linear module thenkhat chuan high-speed operation, high load capacity, leh stability tha tak tak an nei bawk a, hei hian hnathawhna hmun hrang hrang mamawh a phuhruk thei a ni.
Hetah hian,kan steel guide rail embedded linear module kan rawn pholang a,chu chu automation equipment-a hman lar tak, high-precision leh high rigidity linear motion device a ni. A core feature chu module body chhungah steel guide rail (ball emaw roller guide ang chi) embed a, compact leh integrated structure siam a ni.
Project dang en duh tan emaw, Youtube hmanga kan video gallery: https://www.youtube.com/@tallmanrobotics te tlawh theih a ni bawk
Hetah hian chipchiar takin kan chhui dawn a ni:
Steel Type: Guide Rail Linear Module-a siam-. Module hnuai lam plate chu steel , sliding block chu steel a ni a, sliding seat cover plate , leh support seat chu aluminium a ni.
|
Model No |
Taksa zau zawng (mm) . |
Lead (mm) a ni. |
Rail Sei zawng(mm) . |
Repeat theihna (mm) 1.1. |
Kal theihna parallelism(mm) 1.1. |
A tlan chak zawng (mm/sec) . |
Application Environment a ni |
|
TK60 a ni |
60 |
5/10 |
150~600 |
±0.003/±0.005 |
0.01/0.015 |
Max: 600 a ni |
General/ Dust leh Waterproof leh Organ Cover nei |
|
TK86 tih a ni. |
86 |
10/20 |
340~940 |
±0.003/±0.005 |
0.015/0.03 |
Max: 1220 a ni |
TK Steel Guide Rail Linear module-a siam-a siam a nisRitphur specification a ni
TK Steel Guide Rail Linear module-a siam-a siam a nis A dikna Level
TK Steel Guide Rail Linear module-a siam-a siam a nis max speed a ni
1. A bulpui ber structure
Steel guide rail: Carbon sang chromium steel hman a ni tlangpui a, hei hi heat treatment leh precision grinding hmangin load capacity sang tak leh wear resistance (HIWIN, THK leh brand guide rail dang ang chi) a awm theih nan a hmang thin.
Sliding block/slide seat: Ball emaw roller emaw circulation system hmanga siam a ni a, friction motion hniam tak a ti thei.
Module body: Aluminium alloy emaw steel shell emaw, integrated guide rail installation groove, guide rail bawlhhlawh laka venhimna.
Drive unit: Servo motor emaw stepper motor emaw nen paired theih a ni a, screw (ball screw, planetary roller screw) emaw synchronous belt hmanga khalh theih a ni.
2. Thil pawimawh ber berte
High rigidity: Steel guide rail embedded design hian a bending leh torsional resistance nasa takin a tichak a, hei hian heavy-duty emaw high acceleration scenario atan a tha hle.
Compact: Embedded guide rail hian hmun a humhim a, a bik takin installation space tlemte nei device (semiconductor equipment, medical machinery ang chi) tan a tha hle.
High precision: Guide rail pre tightened design chu precision screw nen a inmil a, repeated positioning accuracy chu ± 0.01mm emaw a aia sang emaw a thleng thei.

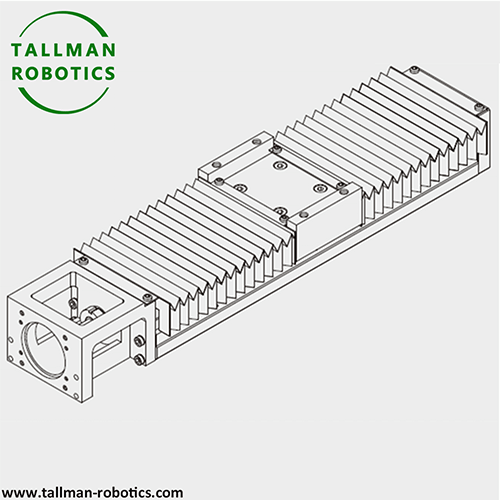

Protective: Module housing-ah hian leivut khuhna (retractable protective cover ang chi) dah theih a ni a, hei hian guide rail-a leivut leh chip a luh loh nan a pui thei a ni.
3. A hman dan tlangpui
Precision machine tools: CNC machining center-a tool magazine movement leh tehna hmanrua awmna tur ang chi te.
Automated production line: Robot arm linear axis, assembly line dik taka hman dan.
Semiconductor hmanrua: wafer transfer robotic arm, lithography machine hmanga hnathawhna hmun.
Damdawi hmanrua: CT scanning bed lehlin, surgical robot joint drive.
4. Selection atana key parameters te
Guide rail chi: Ball rail (high-speed light load) vs Roller rail (heavy-duty impact resistant) te a ni.
Travel itinerary: Mamawh tak tak angin thlang la, module sei zawng phal zat ngaihtuah la (a sei lutuk chuan sag compensation ngaihtuah tur a ni).
Protection level: IP54 (dustproof leh splash proof) emaw a aia sang (humid environment tan IP67 ang chi).
Lubrication method: Grease injection pangngai emaw automatic lubrication system emaw (hun rei tak-hun rei tak chhung enkawl loh ngai).
5. Enkawlna hmun tur
Regular lubrication: Designated grease (lithium based grease ang chi) hmang la, cycle chu operating speed angin siamrem rawh.
Guide rail tihfai: Rail chunglam chu dust-free cloth hmangin silfai la, chutiang chuan hard particles atanga a hrual loh nan.
Preload force enfiah rawh: Hun rei tak-a hman hnuah, gap a san loh nan slider preload chu siamrem leh rawh.
Steel guide rail embedded linear module hian a core advantage atan rigidity leh precision sang tak a nei a, hei vang hian industrial scenario atan a tha hle a, rintlak leh dikna atana thil tul khauh tak a awm bawk. Selection-ah hian load, speed, leh environment ang chi factors te uluk taka zirchian a ngai a, brand hriat lar tak tak (HIWIN, IKO, Bosch Rexroth ang chi) te chu dah pawimawh hmasak a ngai a, chu chuan dam rei leh performance a tichiang thei a ni.
