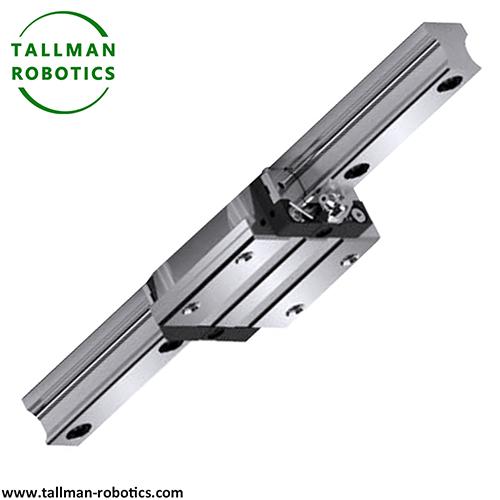

Linear Guide hi precision mechanical system a ni a, linear trajectory ruat saah mechanical components te kal dan tur tihkhawtlai nan hman a ni. A hnapui ber chu a kalna tur kawng kaihruai a, phurrit tuar a, a kalna dik tak a awm theih nan a ni. Linear Guide hi precision mechanical system-a linear motion reference element a ni a, sliding friction chu rolling / fluid friction-ah a chantir a ni. Linear Guide hi industrial automation, precision manufacturing, leh high-end equipment-a linear motion control neih theihna atana thil pawimawh ber a ni a, structural form hrang hrang a huam a, mahse a tlangpuiin rolling friction hmanga hnathawh ber a ni.
Linear Guide hi thumal zau tak a ni a, linear guidance functions implement tu device zawng zawng a kawk a, chung zingah chuan Rolling Linear Guide,Sliding Linear Guide, Aerostatic / Magnetic Guide,Crossed Roller Guide, etc. Chung zingah chuan,rolling element anga ball emaw roller emaw hmanga rolling linear guide hi industrial field-a type hman tlanglawn ber leh "Linear Guide"-a reference object ber a ni.
Linear guide device-a core structure hi a tlangpuiin a bulpui pathum a awm a: guide way: equipment base-a fixed rigid component, reference motion trajectory (guide rail, guide slot, etc. ang chi) pe thei. Moving Block/Carrier: Executing component nena inzawm, guiding substrate-a kal, movable component. Contact medium: guiding substrate leh moving carrier inkara force transmission element, rolling type chu ball/roller, sliding type chu wear-resistant material, leh air floating type chu air film, etc. A hnathawh lai hian mobile carrier chu driving force hnuaiah guiding substrate-ah a kal a, contact medium hian friction (rolling emaw fluid lubrication) tihziaawmin energy hloh a ti tlem a ni. Chutih rual chuan motion trajectory straightness chu structural constraints (precision raceways leh guiding surfaces ang chi) hmangin a tichiang a, pre tensioning design hmangin system rigidity leh anti-interference ability pawh tihchangtlun a ni bawk.
Hetah hian He page ah hian Linear Guideways series kan rawn introduce a, data sheet, production pictures,vedios of test te chu a hnuaia mi ang hian i hmu ang:
Tin, Project dang en duh tan emaw Youtube hmanga kan video gallery tlawh theih a ni bawk: https://www.youtube.com/@tallmanrobotics
1.Linear Guideway hrang hrangte: 1.1.
|
Inzawmzat |

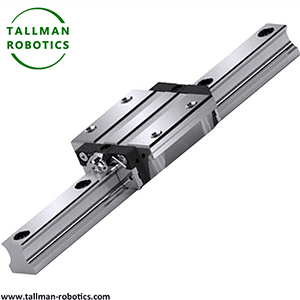

EGW Assembly hniam tak a ni |
|
Dang |
W Flange chi hrang hrang |
|
Lenzawng tehna |
15,20,25,30,35 |
|
Thlalak te |
|
|
Thuhriltu |
Low Profile Ball chi hrang hrang |

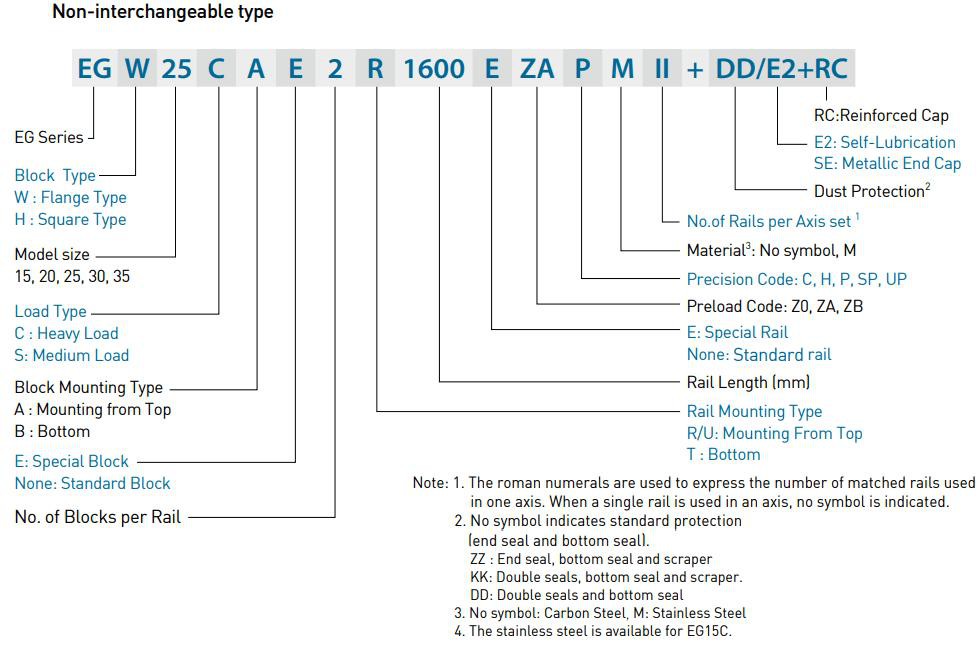

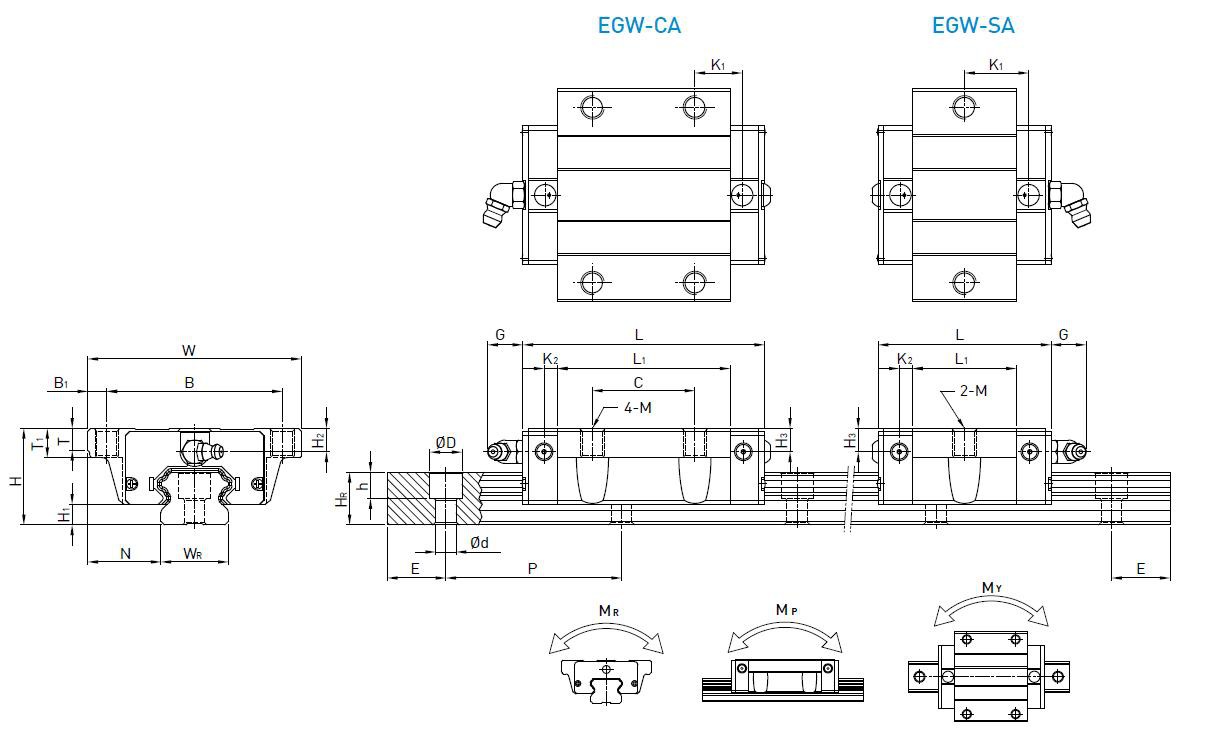

2.Model thlan dan tur kaihhruaina, Linear Guideways Drawing leh Data Sheet siam.
EGW Low Assembly: A rilru a buai em em a, a rilru a hah em em bawk a
Linear Guide thatna bulpui ber chu motion performance a control diknaah a awm a:
|
Trajectory tihkhawtlai a ni |
Mechanically constraining direction of motion hmangin component chu straight line-ah strict takin a kal theih nan a tichiang a, straightness error chu micrometer emaw nanometer level-ah pawh control theih a ni. |
|
Load support a ni |
radial, axial, leh overturning moment ang chi multi-directional load tuar thei, newton tlemte atanga ton sawm thlenga bearing capacity nei, scenario hrang hrang mamawh phuhruk thei. |
|
Friction hloh tlem |
Rolling guide device-a friction coefficient chu 0.001-0.005 chauh a ni a, sliding friction (0.1-0.5) aiin a hniam zawk hle a, hei hian heat generation leh wear a ti tlem a ni. |
|
Precision taka vawn tlat |
Material strengthening (quenching ang chi) leh precision machining (ultra precision grinding ang chi) hmang hian guiding accuracy chu rei tak chhung vawng reng thei a ni a, darkar sang tam tak service life a ni. |
Linear Guide hi tunlai industry-a "motor nerve" a ni a, hman lar tak a ni:
|
High end thil siam chhuah a ni |
CNC machine hmanrua, semiconductor hmanrua, leh 3D printer te tana motion axes te; |
|
Automation tih a ni |
robot kut, AGV guide rail, automated assembly line slide table te a awm a; |
|
Instrument dik tak (precision instruments) te |
medical imaging hmanrua (CT/MRI), mit hmanga hriat theihna platform; |
|
Aerospace atanga lo chhuak a ni |
wind tunnel test bench, satellite rilru put hmang siamrem dan, etc. |
Power source leh execution end inzawmkhawmtu key link angin Linear Guide hian hmanrua motion accuracy, operating efficiency, leh reliability te chu direct-in a tichiang a, high-end equipment siamna level tehna atana indicator pawimawh tak pakhat a ni.
