Electric Rotary Table tih awmzia bulpui ber chu mechanical device a ni a, electric chu a power source atan a hmang a, motor rotational motion chu mechanical transmission structure hmangin worktable rotation emaw indexing motion dik takah a chantir a, control system nen a thlunzawm a, high-precision positioning leh motion control a nei thei a ni. A thil pawimawh ber chu "electric drive" leh "precise rotary positioning" te a ni a, hei hi manual rotary table emaw pneumatic/hydraulic driven rotary device emaw nen a danglam a ni. Electric rotary table hian control accuracy sang zawk, speed range zau zawk, automation integration theihna chak zawk a nei bawk.
Functional perspective atang chuan Electric Rotary Table hian 360℃continuous rotation a ti thei mai bakah fixed angle indexing positioning (rotation khatah 90℃leh 60 degree-a pausing ang chi) a ti thei bawk. High-end model thenkhat chuan eng angle-ah pawh programmable positioning an support a, rotation trajectories atana complex process hrang hrangte mamawh hrang hrangte chu an phuhruk a ni. A positioning dikna hian second (angular unit-ah) emaw micrometer (radial/axial runout-ah) emaw a thleng thei tlangpui a, hei vang hian processing leh testing-a inmilna tur precision manufacturing-a hmanraw pawimawh tak a ni.
Electric Rotary Table hi electric hmanga khalh, automated mechanical component a ni a, rotational positioning dik tak a nei thei a ni. Industrial automation, precision manufacturing, robotics technology leh thil dang dangah te hman a ni nasa hle. Motor-driven transmission mechanism hmangin worktable chu controllable rotational motion ti turin a khalh a, angle positioning, continuous rotation, leh indexing motion ang chi function te pawh a ti thei bawk. Automated production line leh precision equipment-a multi station operation leh angle adjustment neih theihna tura core component a ni.
A structure ofEelectric hmanga siam a niRotary tih a niDawhkana tlangpuiin hmun paruk a awm a, chungte chu drive system, transmission system, worktable, support structure, detection feedback system leh control system te an ni. Part tin hian rotation function dik tak neih theih nan an thawk dun a:
|
Drive system a ni |
Core chu driving motor a ni a, a chi tlangpui chu servo motor (AC servo motor, DC servo motor ang chi) leh stepper motor te hi a ni. Servo motor te hian closed-loop control advantage an neih avangin positioning accuracy, speed stability, leh dynamic response tha zawk an nei a, hei hian high-precision scenario atan a tha zawk a Stepper motor hian man a tlawm zawk a, positioning accuracy mamawhna hniam tak nei indexing scenario awlsam tak atan pawh a tha hle. High-end model thenkhatah chuan speed tihhniamna hmanga output torque tihpun nan reduction motor dah a ni ang. |
|
Transmission system a ni |
Motor power chu workbench-a thawn chhuahna tura mawhphurtu a ni a, chu chu rotation dikna tichiangtu core link a ni. Transmission hman tlanglawn tak takte chu: 1).Worm gear transmission: compact structure, transmission ratio lian tak, self-locking function (power a tlakchhiat hnuah worktable hi tihzauh a awlsam lo), mahse speed hniam takah chuan "crawling" phenomenon a awm thei a, speed hniam atanga hniam leh torque sang scenario tan a tha a 2)Gear transmission: spur gear, helical gear, emaw harmonic gear ang chi, chung zingah chuan harmonic gear transmission hian accuracy sang tak leh return clearance tlem (0.1℃thleng) a nei a, high-precision indexing atan a tha 3).Direct Drive (DD Motor): Motor rotor hi intermediate transmission components awm lovin worktable-ah direct-in a inzawm a, transmission gap awm lovin ± 5 arc seconds chhungin positioning accuracy a nei thei a ni. Mahse, a man a to hle a, ultra precision scenario, semiconductor siamna atan pawh a tha hle. |
|
Workbench leh a puitu tur structure |
Workbench hi a tlangpuiin circular metal plate (a tam zawk chu cast iron, aluminum alloy, emaw stainless steel atanga siam) a ni a, a chung lamah T-shaped grooves, positioning holes, etc., workpiece emaw fixture emaw awlsam taka fixation atan a awm thin. Supporting structure-ah hian base leh bearing components (cross roller bearing leh precision ball bearings te ang chi) a awm a, hei hi worktable radial leh axial rigidity enfiahna atan leh rotation laiin jumping leh shaking tihtlem nan hman a ni. |
|
Detection feedback system hmanga thil tih a ni |
Closed-loop control neih theihna tur kawng pawimawh tak chu sensor hmanga workbench rotation angle leh position te chu real time-a hriat theih a ni a, signal chu control system-ah feedback pek a ni. Sensor hman tlanglawn ber berte chu encoder (photoelectric encoder, magnetic encoder ang chi) leh grating ruler te an ni a, encoder chu motor emaw workbench emaw nen direct-a inzawm a ni a, real-time position pulse signal a output thei a, chu chuan rotation angle tak tak chu command nen a inmil em tih a enfiah thei a ni. |
|
Control System a ni |
Controller (PLC, motion controller ang chi) leh drive module (servo driver, stepper driver ang chi) te pawh a tel. Controller hian pawn lam atanga thupek (upper computer leh CNC system atanga signal lo lut ang chi) a dawng a, motion trajectory a chhut a, control signal chu drive module-ah a thawn a Drive module hian signal a zirin motor speed, steering leh torque te chu a siamrem a, chu chuan positioning dik tak a nei thei a ni. |

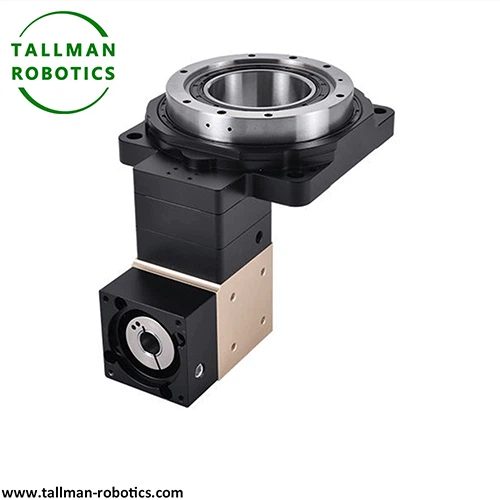

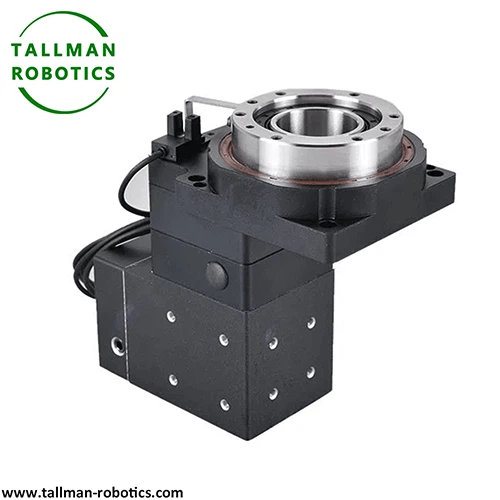

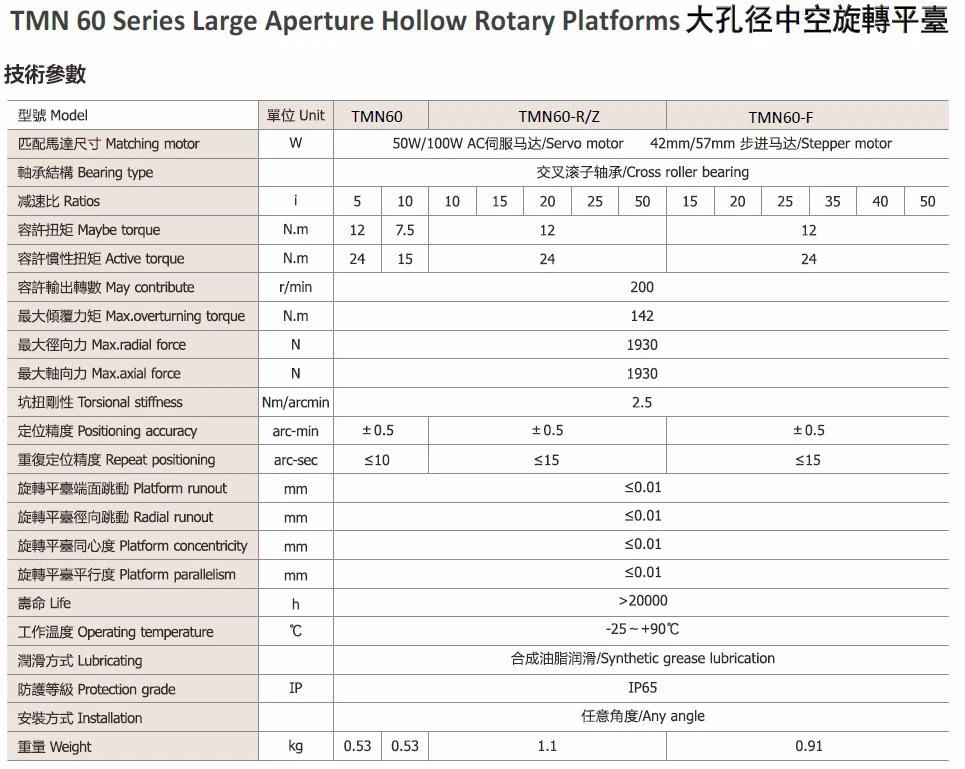

Hetah hian He page ah hian series ofElectric hmanga siam a niRotary Table a ni,data sheet, production pictures,vedios of test te chu a hnuaia mi ang hian i hmu ang:
Tin, Project dang en duh tan emaw Youtube hmanga kan video gallery tlawh theih a ni bawk: https://www.youtube.com/@tallmanrobotics
Motorized Rotary Tables packing leh delivery te chu a hnuaia mi ang hian a ni.

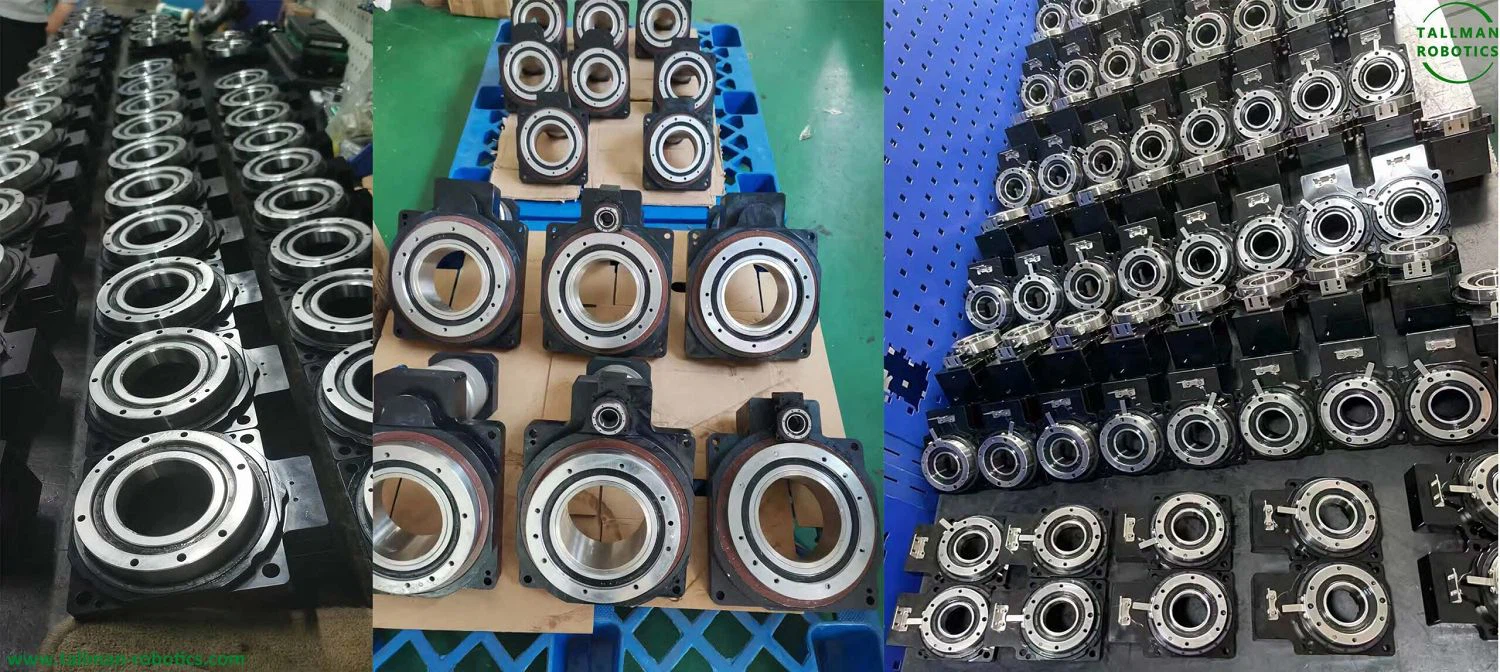

Production ofElectirc chuan a ti aRotary Table a ni:
A hnathawh bulpui ber chuEelectric hmanga siam a niRotary tih a niDawhkan"precise rotation control" vel a ni a, chung zingah chuan:
1).High precision positioning: Closed-loop control leh precision transmission hmangin positioning accuracy ± 0.01℃atanga ± 5 arc seconds thleng a ti thei a, model thenkhat chuan repeated positioning accuracy<=± 1 arc seconds a support bawk
2).Programmable motion control: automated indexing, continuous rotation emaw composite trajectory motion neih theihna turin upper computer emaw control panel kaltlangin preset rotation angle, speed, acceleration leh parameter dangte a support a
3).High rigidity leh stability: Support structure leh bearing thlan dan tha zawk siamin, high-speed rotation laiin radial/axial runout chu 0.01mm aia tlem emaw, a tlukpui emaw a nih ngei ngei tur a ni a, hei hian workpiece processing emaw detection errors a tihziaawm ang
4).Compatibility leh Scalability: Robot, numerical control system (CNC ang chi), visual inspection equipment, etc. te nen inzawmkhawm theih a ni a, I/O signal, EtherCAT, Modbus leh communication protocol dangte support thei a ni a, automated production line-ah pawh a inzawm thei bawk.
Technical features lamah chuan electric rotary worktable hian "automation" leh "precision" tih thatna pahnih a nei a: manual rotary worktable nena khaikhin chuan program hmangin unmanned operation a ti thei a, production efficiency a ti sang thei a Pneumatic/hydraulic rotary table nena khaikhin chuan air source/hydraulic oil pressure inthlak danglamna hian a nghawng lo va, a kal awlsam zawk a, a positioning accuracy pawh software calibration hmangin a optimize chhunzawm zel theih bawk.
Eelectric hmanga siam a niRotary tih a niDawhkan hian rotation dik tak leh automation control theihna avang hian multi station rotating operation mamawhna scenario-ah an hmang nasa hle. Industry pangngaiah chuan:
|
Thil siam leh tihfai dan dik tak |
CNC machine tools, machining center leh engraving machine-ah te chuan electric rotating workbench hian workpiece hrang hrangte multi-faceted machining (clamping pakhata circular surface drilling leh milling ang chi) a ti thei a, clamping hun a tihtlem bakah machining accuracy a ti tha thei bawk. Entirnan, mold processing-ah chuan circular mold-te slot processing inang chu worktable chu rotate-in a awm a, slot position tina angle error chu<=0.02℃a nih theih nan a ni. |
|
Automated assembly leh testing a awm bawk |
Electronic leh automotive component assembly line-ah chuan rotating worktable hi "turntable workstation" angin a thawk thei a, workpiece te chu assembly, tightening, testing, leh workstation dangteah a hnungzuiin a transfer thei a, chu chuan streamlined operation a ti thei a ni. Mobile phone camera module inzawmkhawmnaah chuan module chu rotating table hmangin dispensing, welding leh testing position-ah dik takin dah a ni a, positioning time chu Less than 0.1 seconds per time a ni. |
|
Semiconductor leh Photovoltaic Industry hmanga siam a ni |
Wafer enfiah leh chip packaging kalpui danah chuan electric rotary worktable (DD motor hmanga khalh fo thin) hian wafer micrometer level rotation positioning a neih theih nan a mamawh a, chu chuan detection probe emaw packaging head emaw chu chip pins nen a inmil tur a ni a, positioning accuracy mamawh chu ± 3 arc seconds aia tlem emaw, a tlukpui emaw a nih theih nan a mamawh a ni. |
|
Damdawi leh laboratory hmanrua te |
CT leh MRI ang chi medical imaging equipment-ah chuan rotating worktable hian damlo emaw test sample emaw chu speed pangngaia rotate turin a khalh a, imaging system nen thawkdunin multi angle data a hmu thei a Laboratory automation hmanruaah chuan sample tray-a sample thlak, tihnghing leh hnathawh dangte chu automatic-in a ti thei a ni. |
|
Packaging leh Printing Industry lam a ni |
Label printing, bottle cap hot stamping leh hmanraw dangteah chuan, rotating worktable hian product chu a rotate turin a khalh a, printing head emaw hot stamping mechanism emaw nen thawhhona tha tak neiin circumferential surface-ah uniform printing a awm thei a, pattern docking dikna (label seam error 0.1mm aia tlem emaw, a tlukpui emaw ang chi) a tichiang a ni. |
Thil thlan hunahEelectric hmanga siam a niRotary tih a niDawhkan, a hnuaia indicator te hi ngaihven a pawimawh hle:
1).Positioning dikna leh repeatability dikna: Workpiece processing emaw testing emaw inmilna tur tehfung siam. High-precision scenario atan chuan angle ± 10 arc second aia tlem emaw, a tlukpui emaw nei model thlan tur a ni a;
2).Speed range: Process mamawh angin thlan (continuous rotation scenario-a speed sang mamawh leh division scenario-a speed hniam stability mamawh ang chi)
3).Load capacity: axial load (workbench-in a phur vertical pressure) leh radial load (workpiece eccentricity avanga lateral force siam) te pawh a tel a, chungte chu workpiece rit nen a inmil tur a ni
4).Return clearance: Transmission system clearance size hian reverse rotation laiin positioning error a nghawng nghal vek a. Precision scenario atan chuan clearance 0.1℃aia tlem emaw, a tlukpui emaw nei model thlan tur a ni a;
5).Communication leh control mode: Control system awm tawh (PLC, robot ang chi) nena inmil theihna a support em, bus control (Profinet, EtherCAT ang chi) a mamawh em?
Industrial automation-a "precision rotation core" a nih angin electric rotary worktable hian electric drive leh closed-loop control technology hmangin rotational motion precision sang tak, stability sang tak, leh programmability sang tak a nei thei a ni. A structural design hian power transmission leh accuracy assurance pahnih a ngaihtuah a, precision manufacturing, electronic assembly, leh semiconductors, rotational positioning khauh tak mamawhna field-ah te pawh a tha hle. Industry 4.0-a automation leh intelligence hmasawnna avang hian electric rotary workbench te chu precision sang zawk (nanoscale positioning ang chi), integration sang zawk (integrated visual inspection ang chi), leh programming flexible zawk lam hawiin a lo thang chho zel a, hei hi production efficiency leh product quality tihchangtlunna atana hmanraw pawimawh tak a ni ta a ni.
