Hollow Rotary Tables te chu a awm a

Institution chi hrang hrang

A thatna te

A that lohna te

Scenario hmantlak tak takte

Hollow rotating platform a ni

Precision sang tak, a structure hollow tak a ni

A man a to hle

Positioning dik tak leh through-hole mamawh

Worktable rotating pangngai tak a ni

A man tlawm, structure awlsam tak a ni

Design hollow lo, precision hniam tak a ni

Precision handling hniam, rotation awlsam tak a ni

DD motor (direct drive) hmanga siam a ni.

Zero clearance,dynamic response sang tak a ni

Load capacity hniam, man to tak

Ultra precision, light load scenario a ni bawk

Cam divider a ni

Speed ​​sang tak, stability sang tak a ni

Indexing ratio fixed, flexibility hniam tak a ni

Indexing rotation (filling machine ang chi) a inthlak danglam thin.

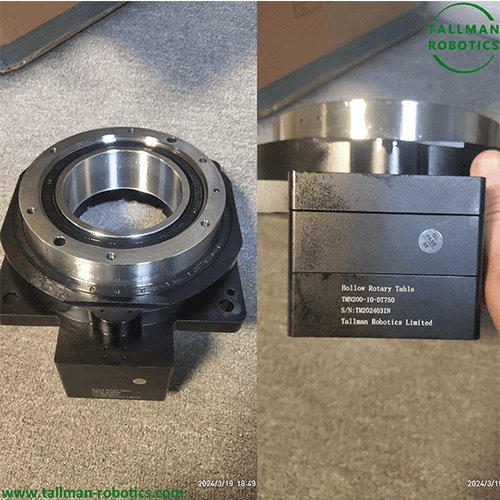

Aperture lian tak tak Rotary Table te

Hypoid Gear Hollow Rotary Platform hmanga siam a ni

CAM Roller Hollow-a awmte chu a inher chhuak thei

A rilru a buai em em a, a rilru a hah em em bawk a. Hollow Rotary Tables

A rilru a buai em em a, a rilru a hah em em bawk a. Hollow Rotary Tables

Dilna hmun hrang hrang

Case Study hrang hrang neih a ni

Scenario mamawh a ni

Hollow Rotary Tables te hnathawh dan

Automated production line leh precision assembly a awm bawk

Electronic Component hrang hranga hman tur Precision Welding Workstation siam a ni

Mobile phone camera module leh sensor ang chi micro electronic components welding process chhung hian spot welding atan workpiece chu angle hrang hrangah rotate a ngai a, chutih rualin cable entanglement (welding gun control line leh signal line ang chi) te chu pumpelh a ngai bawk.

1).Platform hian workpiece chu dik taka a inher theih nan a khalh a (repeat positioning accuracy ± 0.01mm hmangin), welding point position deviation chu 0.02mm aia tlem a nih theih nan a enkawl a

2).Mechanical interference tihziaawmna tur leh workstation layout awlsam zawka siam turin welding gun cable leh gas pipe chu central through-hole kaltlangin dah la

3).Servo motor te nen thawhhona tha tak neiin low-speed smooth rotation 0.1℃/s a awm theih nan, welding laiin workpiece a nghing loh nan.

PCB board endik leh enchhinna hmanrua te

PCB board hi detection equipment-ah 90℃leh 180 degree-a rotate a ngai a, chutiang chuan optical camera hian solder joint leh circuit defect te chu angle hrang hrang aṭangin a hmu thei a ni.

1).PCB board angle (rotation response time) te chu rang takin thlak rawh<0.5s) to improve detection efficiency;

2).Central through-hole hian PCB board hnuaiah probe cable a dah a, chu chu cable pulling avanga detection error awm loh nan a ni a;

3).Rigidity sang tak design hian PCB board chu rotation laiin offset a nei lo tih a tichiang a (flatness error<0.05mm).

Robotics Technology leh End effectors te a ni

SCARA robot hian joint a siam khawm thin

3C products assembly-ah hian SCARA robot hian screw tightening leh component flipping through end rotation ang chi action a neih a ngai a, workpiece sei hrang hrang nen a inmil tur a ni.

1).Robot-a Z-axis rotating joint angin, repeat positioning accuracy ± 0.02mm a nei a, precision assembly-a thil tulte a tlin a

2).Hollow structure hian screw leh conduit sei tak takte chu end effector kaltlangin a kal thei a, workpiece sei hrang hrang inzawmkhawmnaah a inmil a

3).Backlight hniam (<1 arc minute) ensures no jamming during rotation, improving the consistency of screw tightening.

Hnathawhhona robot material sorting terminal

Food leh pharmaceutical sorting lama thawhhona robot te hian material te chu kawng bik (label lam hawi ang chi) ah an rotate a ngai a, packaging box size hrang hrang nen pawh an inmil tur a ni.

1).Visual sensor hmanga thuam, platform lam hawi (angle resolution 0.01℃nei) hmanga siamrem theih a ni a, chu chuan sorting dik tak a siam thei a

2).Central through-hole hian pneumatic clamp-a trachea leh sensor cable-ah a lut a, end wiring a ti awlsam a;

3).High load capacity (axial load>50kg) hian thil tam tak a ruala man theihna a thlawp a, sorting efficiency a ti sang hle.

Precision machining leh laser hmanga hmanrua te

Laser marking machine hmanga hnathawhna hmun rotating

Cylindrical workpiece (insulated cup leh bearing ang chi) chunglam mark-naah hian workpiece chu 360 degree-a inher a ngai a, chu chuan pattern kal zel tur a nei thei a, laser light path chu cable-in a block loh nan a veng tur a ni.

1).Laser marking line mumal leh tihtawp loh theih nan workpiece chu speed mumal (± 1rpm precision-a)-a inher turin khalh la

2).Central through-hole hian laser hmanrua water-cooled tube leh signal line chu a paltlang thei a, laser optical path-a cable interference a awm loh nan

3).High rigidity tabletop hian workpiece rotation laiin vibration a ti tlem a, marking dikna (line width error) a tichiang<0.01mm).

Axis panga machining center-a axis rotating table palina

Mould leh aviation parts processing-ah hian five axis machine tools hian rotating axes hmanga workpieces multi-faceted cutting a neih theih a ngai a, elongated workpieces (blade leh shaft parts ang chi) nen pawh a inmil tur a ni.

1).Axis palina rotary table angin, workpiece-te multi angle cutting (positioning accuracy ± 5 arc seconds) a ti thei a, clamping hun pawh a tihtlem bawk

2).Large aperture hollow design (>100mm) hian workpiece sei tak, rectangular workpiece te chu rotating table chhungah a kal tlang thei a, workpiece leh hmanrua inkara buaina a awm loh nan;

3).Processing environment-a coolant leh debris-te nghawng dan nena inmil turin temperature sang leh hniam (-10℃~60℃) tuar thei tura duan a ni.

Damdawi leh laboratory hmanrua te

Medical imaging CT scanner stage hmanga enfiah a ni

CT scanning neih lai hian damlo emaw sample emaw chu speed mumal takin a inher a ngai a, chutih rualin scanning area chu motor cable leh sensor line-in a tihbuai loh nan.

1).Vibration rotation hniam (vibration awm zat<0.01mm) ensures that the scanned image is free of ghosting;

2).Central through-hole hian damlo taksa hnuaiah physiological monitoring cable (ECG leh thisen oxygen line ang chi) a dah a, damlo thlamuanna a ti sang a

3).Absolute encoder hian rotation angle-ah real-time feedback a pe a, chu chuan scanned fault position a inmil theih nan.

Biochemical sample hmuhchhuah theihna tur automatic turntable

Enzyme-linked immunosorbent assay (ELISA) leh PCR machine-ah chuan batch detection neih theih nan sample tube tam tak chu detection station-ah rotate a ngai a, sample tube leh equipment cable inkara inzawmna awm loh a ngai a ni.

1).Indexing rotation dik tak (indexing error<0.1mm) to ensure that the sample tube is aligned with the detection light path;

2)Hollow structure hian test tube heating module power cord leh temperature control cable a luhchilh a, hmanrua chhungril layout a ti awlsam a

3).Low noise design (operating noise) a ni<50dB) to meet the requirements of quiet laboratory environment.

Packaging leh Logistics hrang hrang thliar hrang

High speed labeling machine awmna tur rotary table

In tur leh cosmetic bottle-a label siam hian bottle chu vawi khat a inher a ngai a, chu chu label nena inmil tur leh bottle diameter hrang hrang nena inmil tur a ni.

1).High speed rotation (maximum speed>300rpm) matches the production line rhythm, capable of processing>darkar khatah bottle 10000 vel a ni a;

2)Central through-hole atanga bottle chhunga lut pneumatic push rod emaw sensor wire emaw chu bottle san zawng hrang hrang nen a inmil a

3).Quick start stop response (acceleration hun chhung<0.2s) reduces the shaking of the bottle during switching and avoids label wrinkling.

Logistics package hrang hrang thliar hrang dan turning mechanism

Intelligent logistics sorting center-ah chuan package chu a sorting gate lam hawi (90℃, 180℃ang chi)-ah a rotate a ngai a, package-in a weight impact a tuar thei bawk.

1).High axial load design (>200kg) chuan deformation awm lovin package tlak avanga nghawng a tuar thei a;

2)Hollow structure hian conveyor belt drive shaft leh sorting line-a position sensor cable a dah thei a;

3).Visual system nen thawhhona tha tak neiin rotation angle chu real-time-ah (response delay) siamrem rawh<10ms), improving sorting accuracy.
